1. Global Broadcasting: World band digital receiver is an FM stereo, AM,LW,SW,SSB world band receiver, suitable for global FM broadcast reception.

2. Multiple Channels: Radio receiver uses sound bandwidth filters 0.5, 1, 1.2, 2.2, 3 and 4Khz; 22 commercial and amateur radio frequency bands are pre configured.

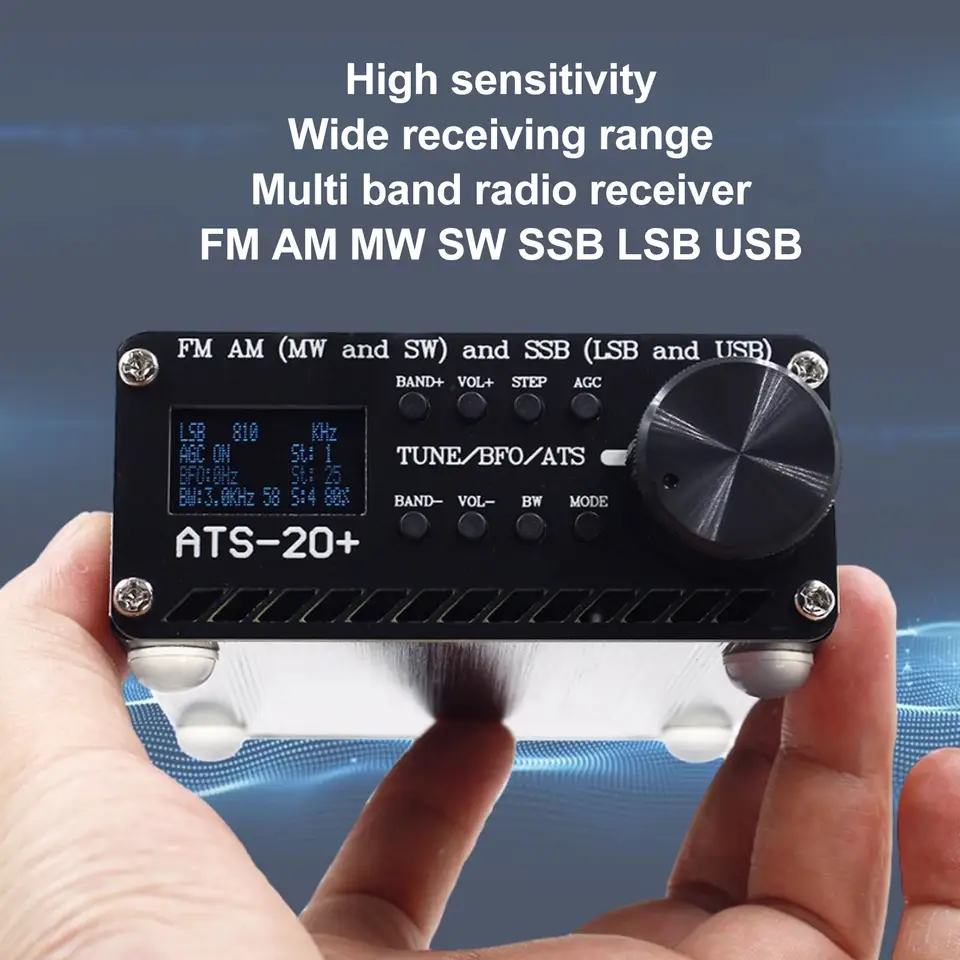

3. High Sensitivity: FM AM world band receiver adopts multiple conversion and DSP digital demodulation technology, which greatly improves the sensitivity of radio.

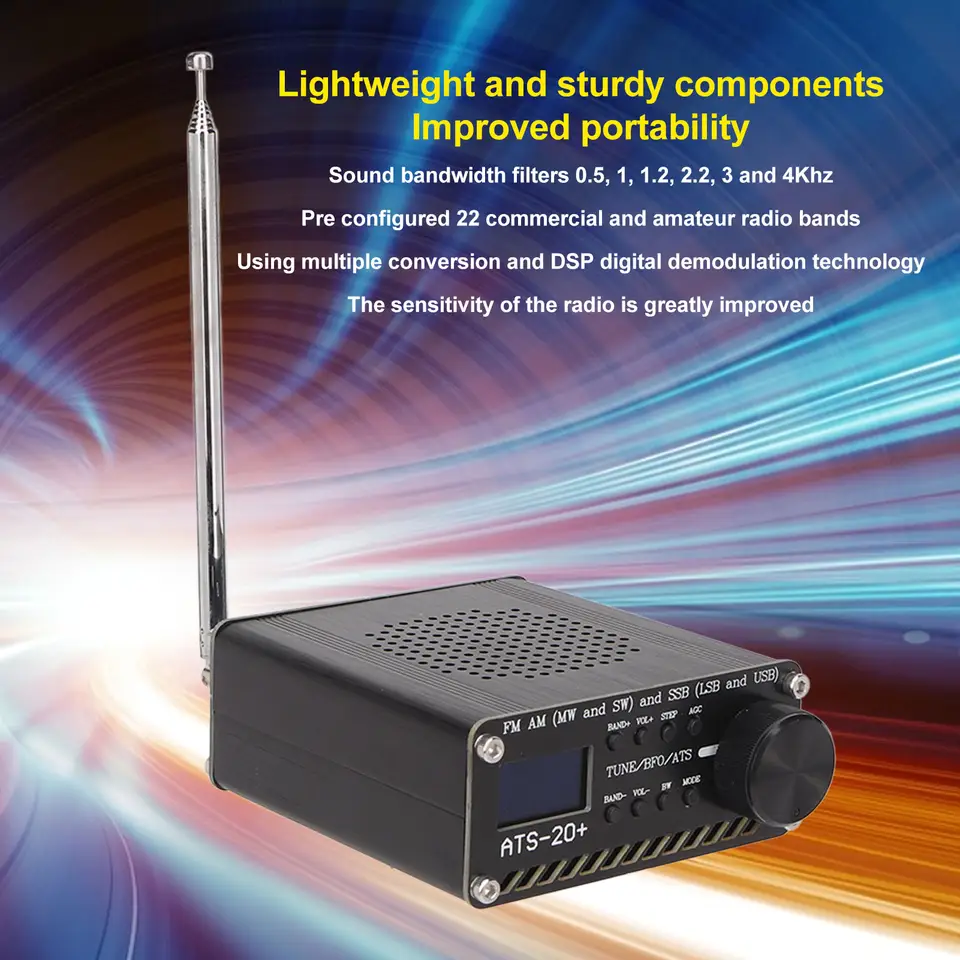

4. Portable and Light Weight: Radio receiver's lightweight and sturdy components and unique and exquisite design maximize portability. Easy to use with large tuning knobs and volume knobs.

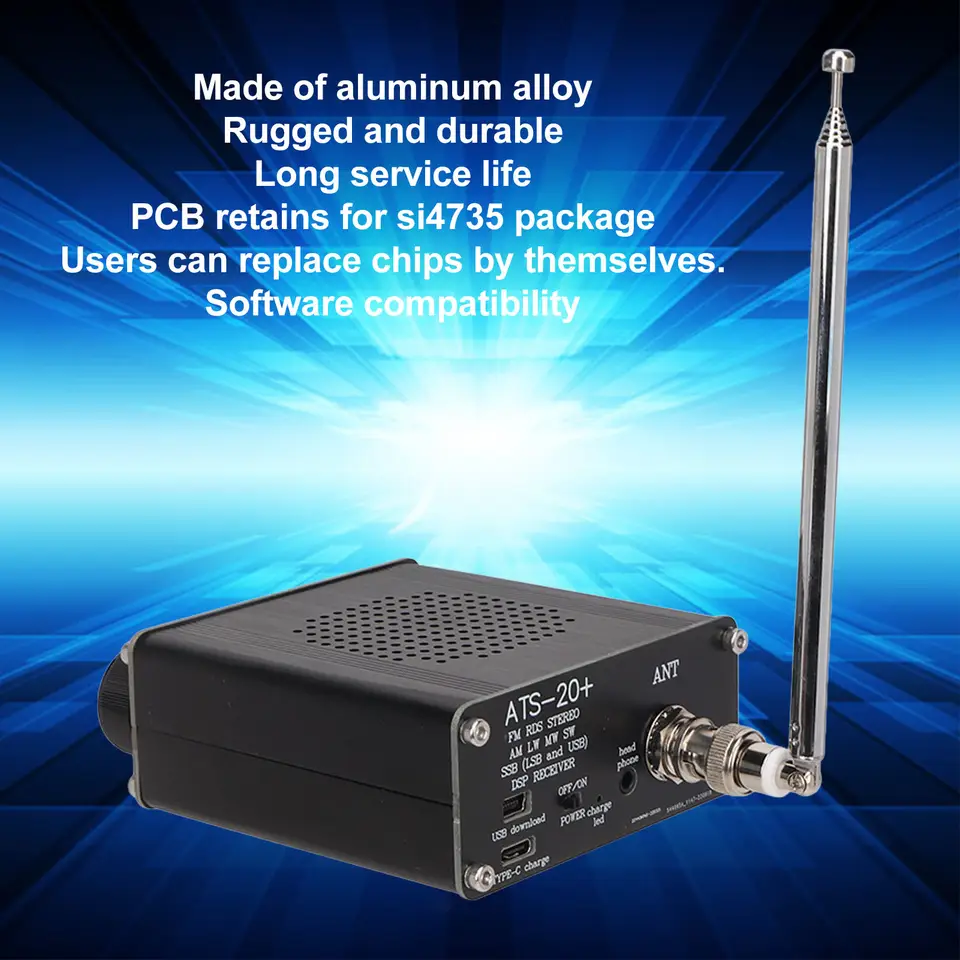

5. Stable Performance: The radio receiver is made of aluminum alloy, which is sturdy and durable. The PCB retains the for si4735 package. Users can replace the chip by themselves and the software is compatible.

6. Applicable: FM AM world band receiver suitable for outdoor camping and listening to radio music in the kitchen are necessary for participating in parades and family life.

Item Type: Radio Receiver
Material: Metal, PCB
Model: ATS 20+
Screen: 0.96 inch
Charging Interface: Type C
Speaker: 8ohm 1.5W
Battery Type: 800mAh Lithium Ion Battery (Built In)
Supported Frequency Bands: FM, AM (MW and SW) and SSB (LSB and USB)
Band:
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 m/524.9ft
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 m/262.5ft
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 m/131.2ft
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 m/98.4ft
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 m/65.6ft
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 m/55.8ft
{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 m/49.2ft
{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 m/39.4ft
{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB Band (11m/36.1ft)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}, 10 m/32.8ft
